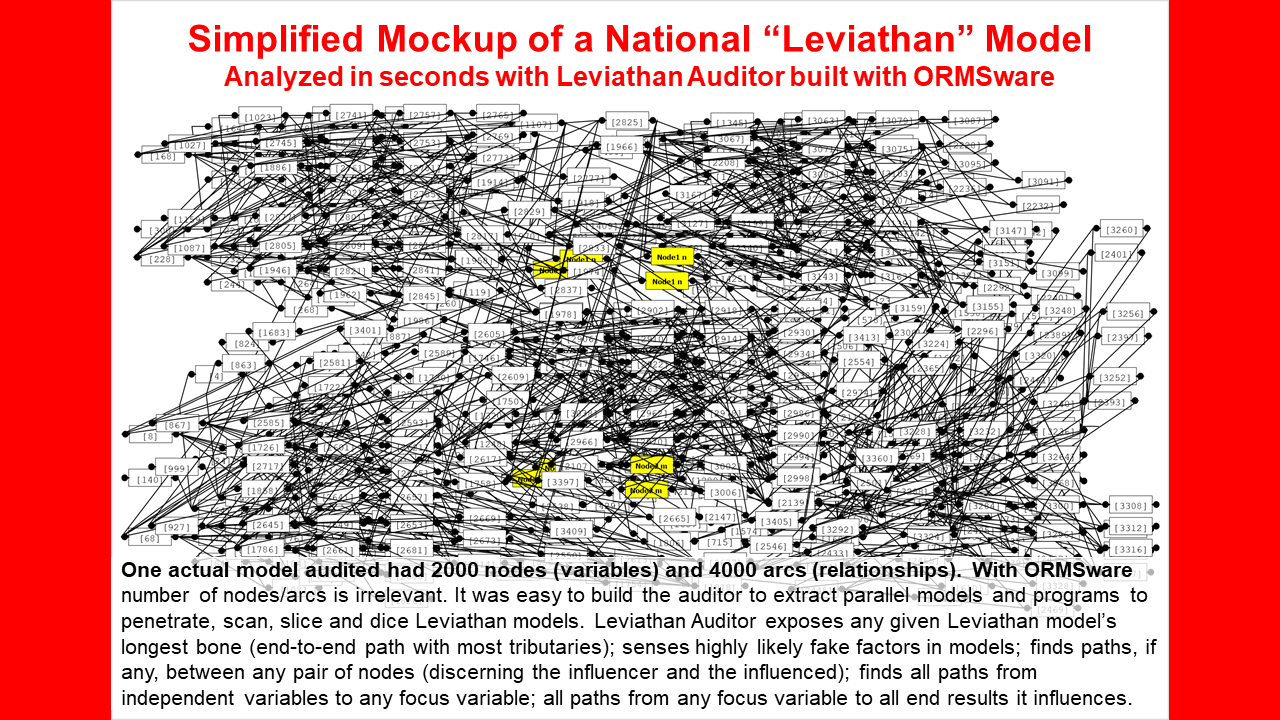

Logical Network Diagrams of Leviathan Auditor

Each link below opens a new window with diagrams of the logical [sub]network with that name in the program (names in yellow nodes in diagrams are [sub]network names):

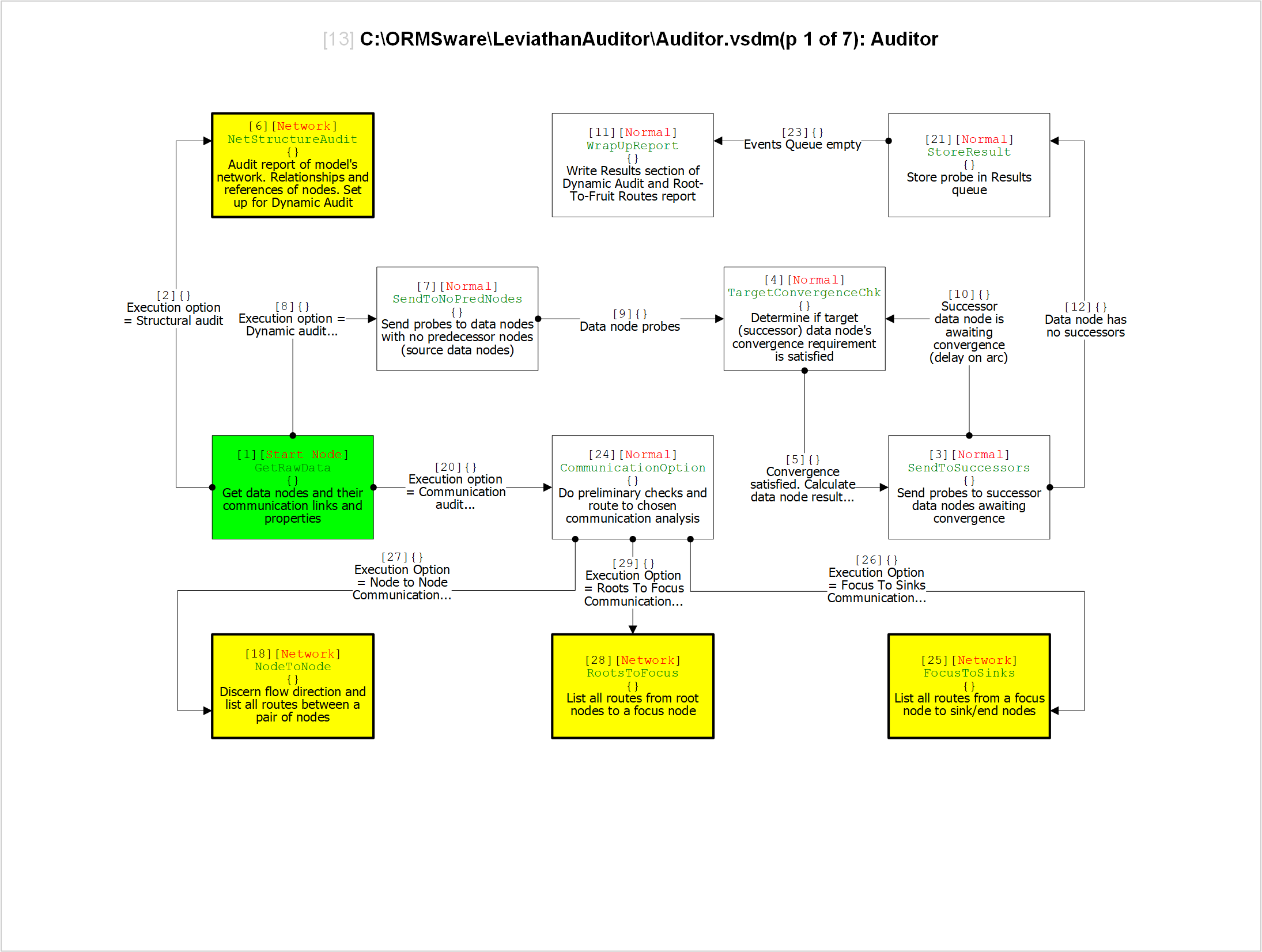

  1. Auditor

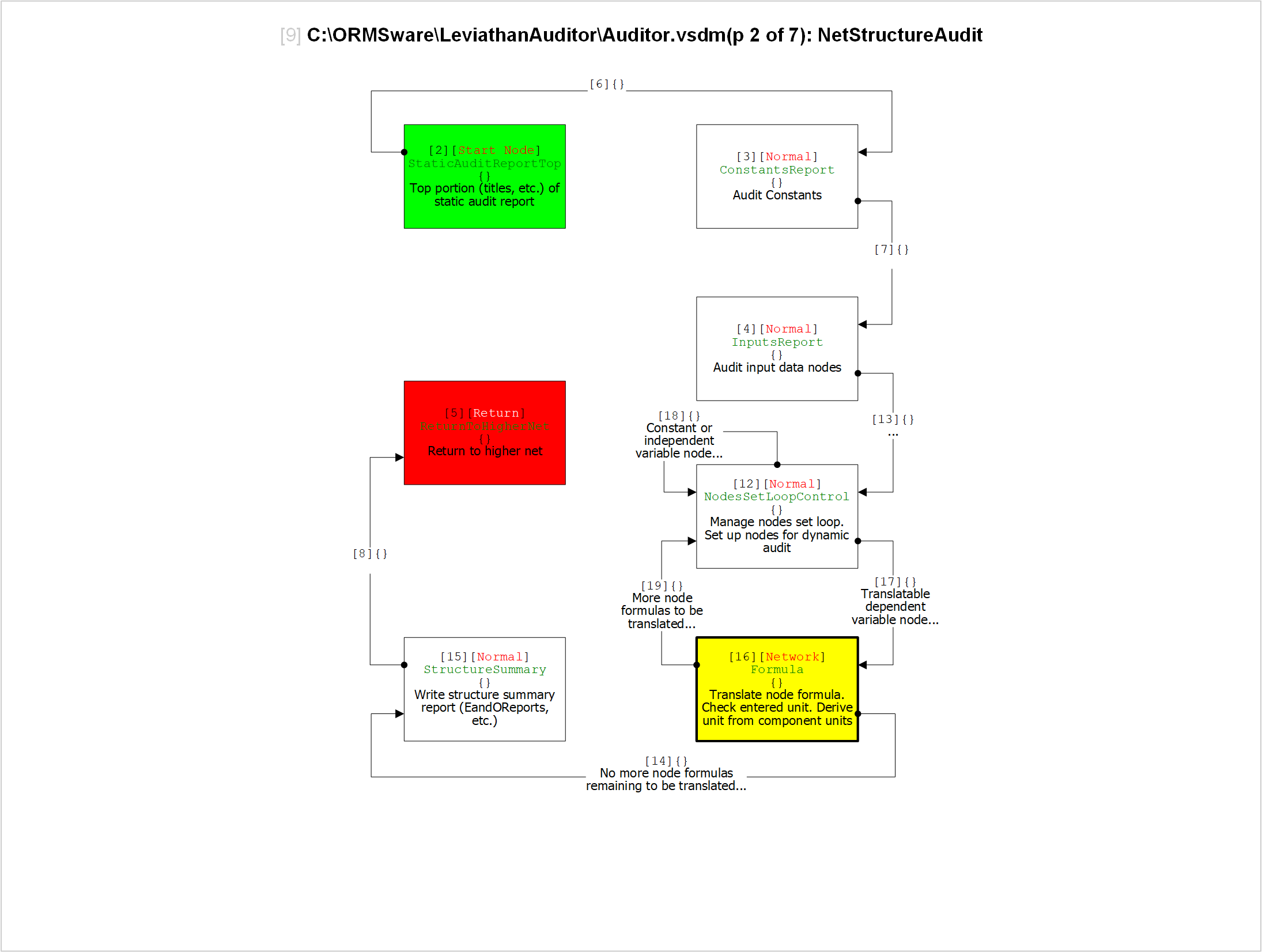

  2. NetStructureAudit

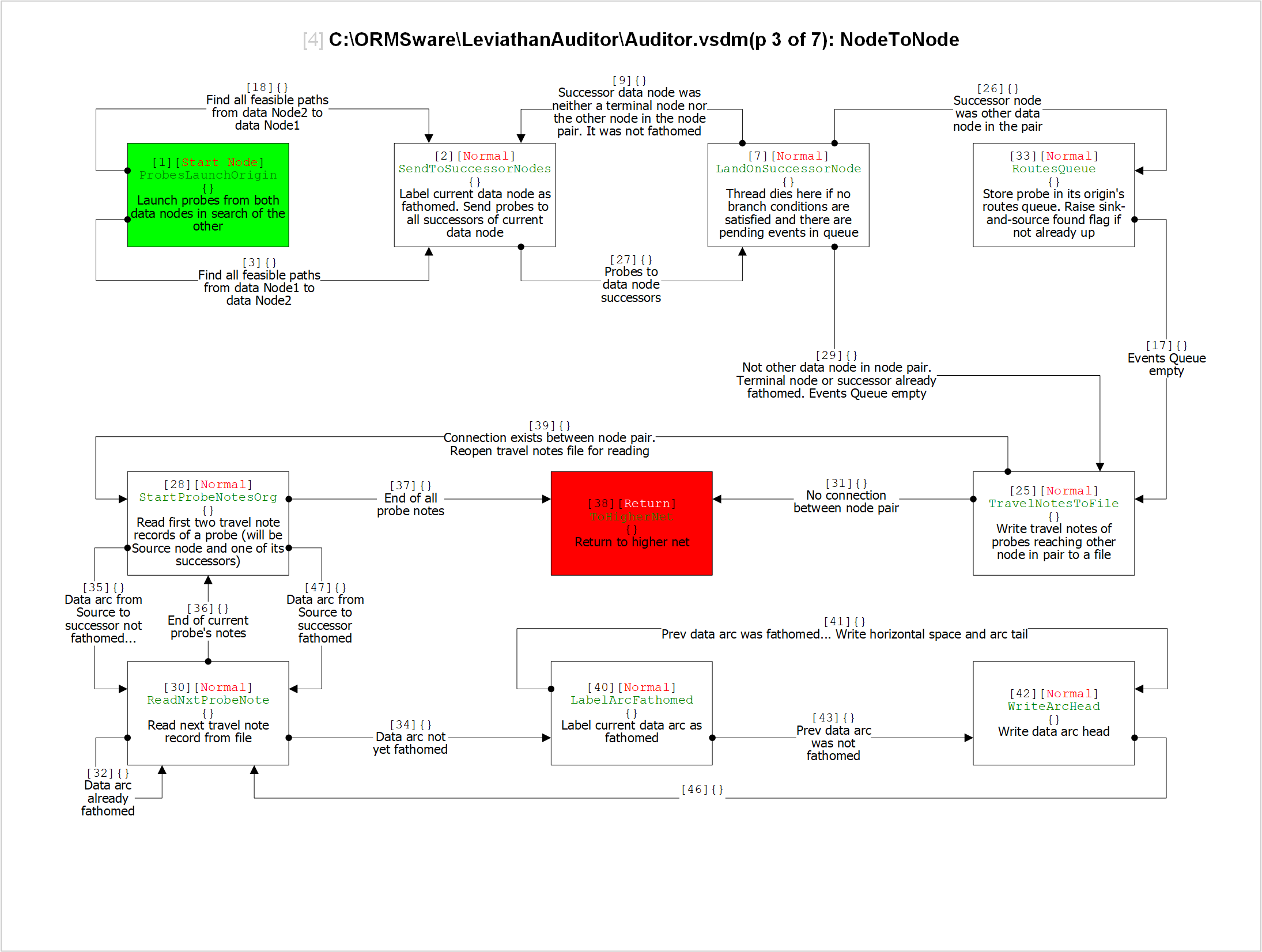

  3. NodeToNode

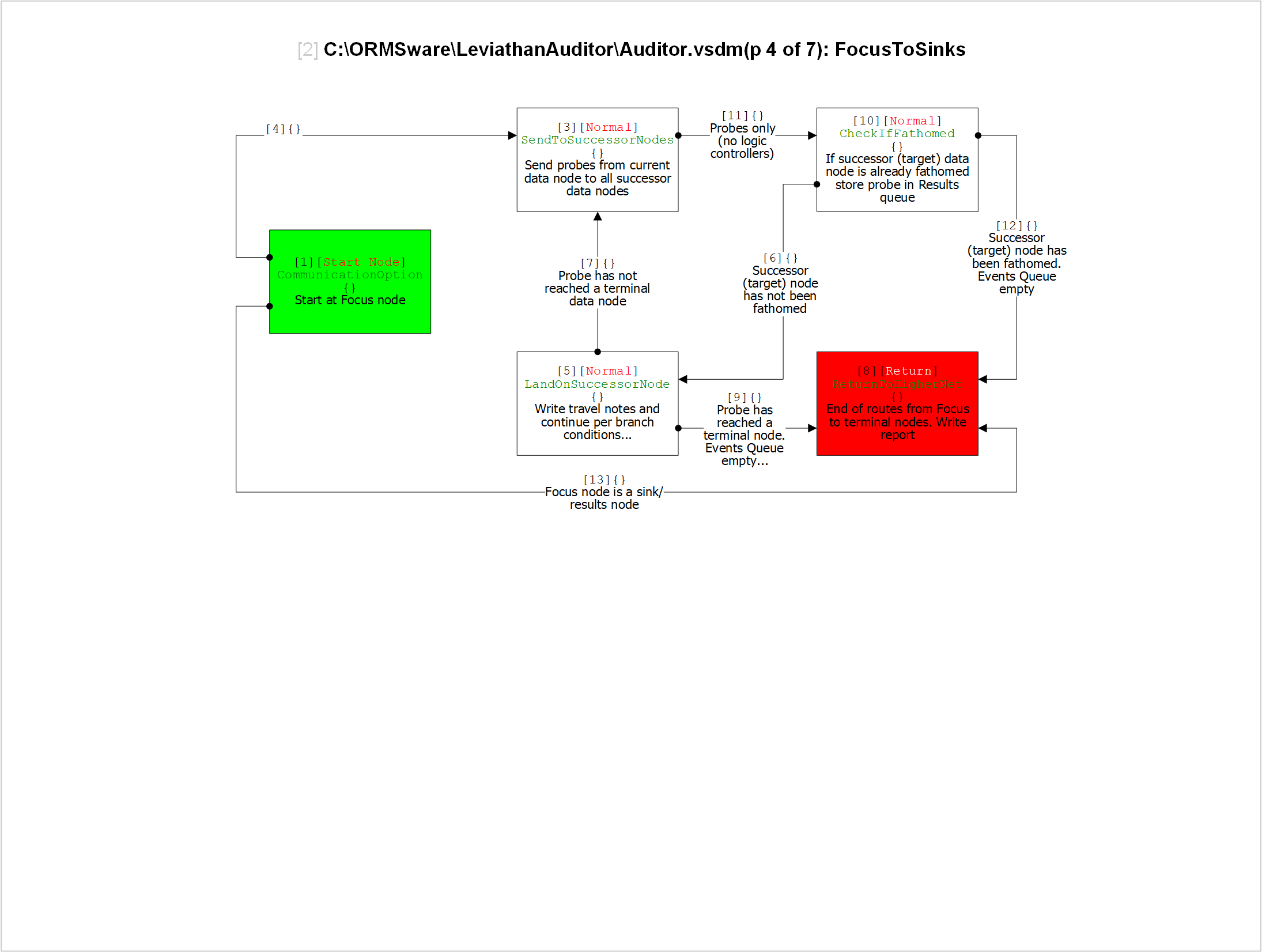

  4. FocusToSinks
  5. RootsToFocus

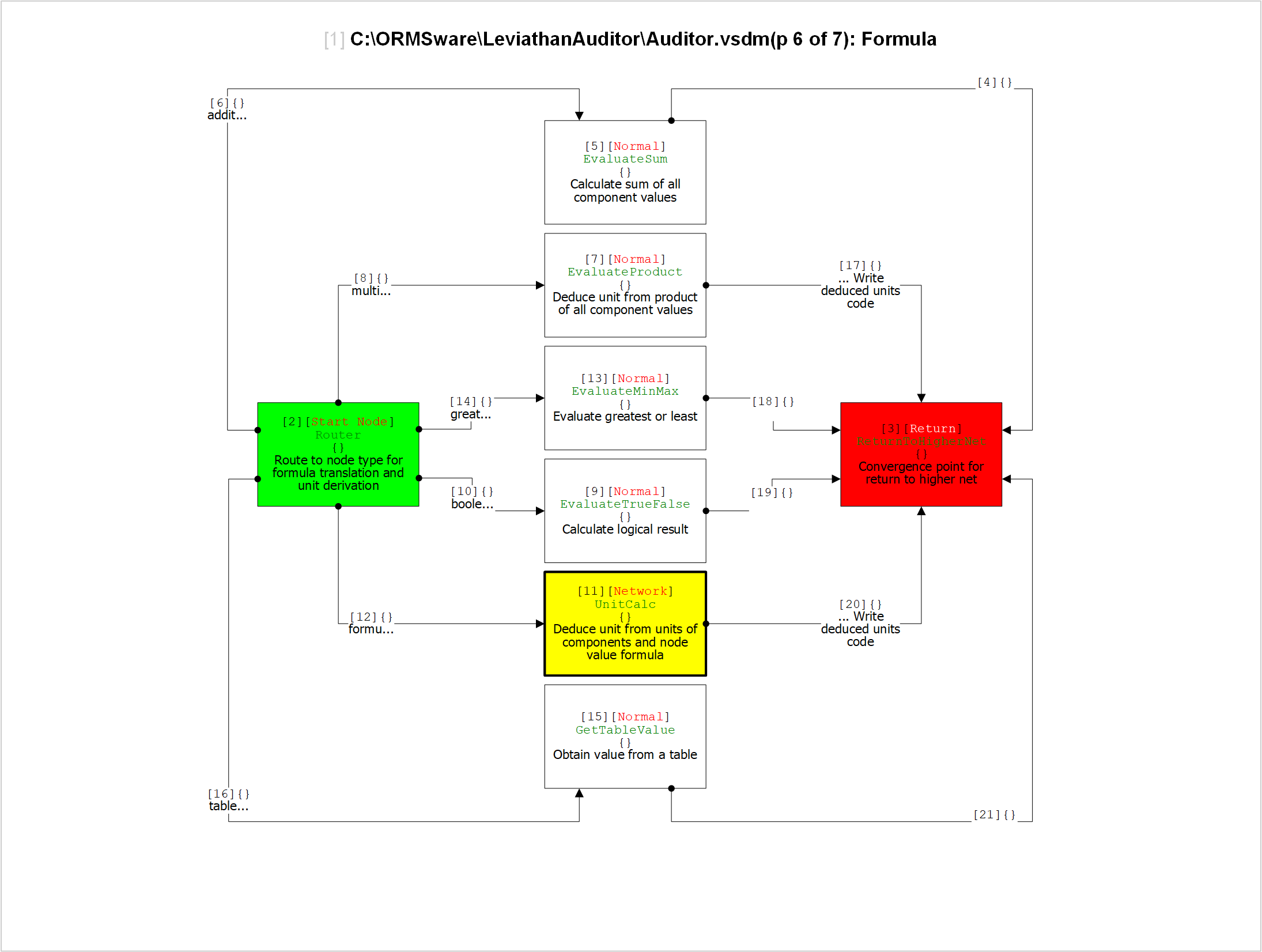

  6. Formula

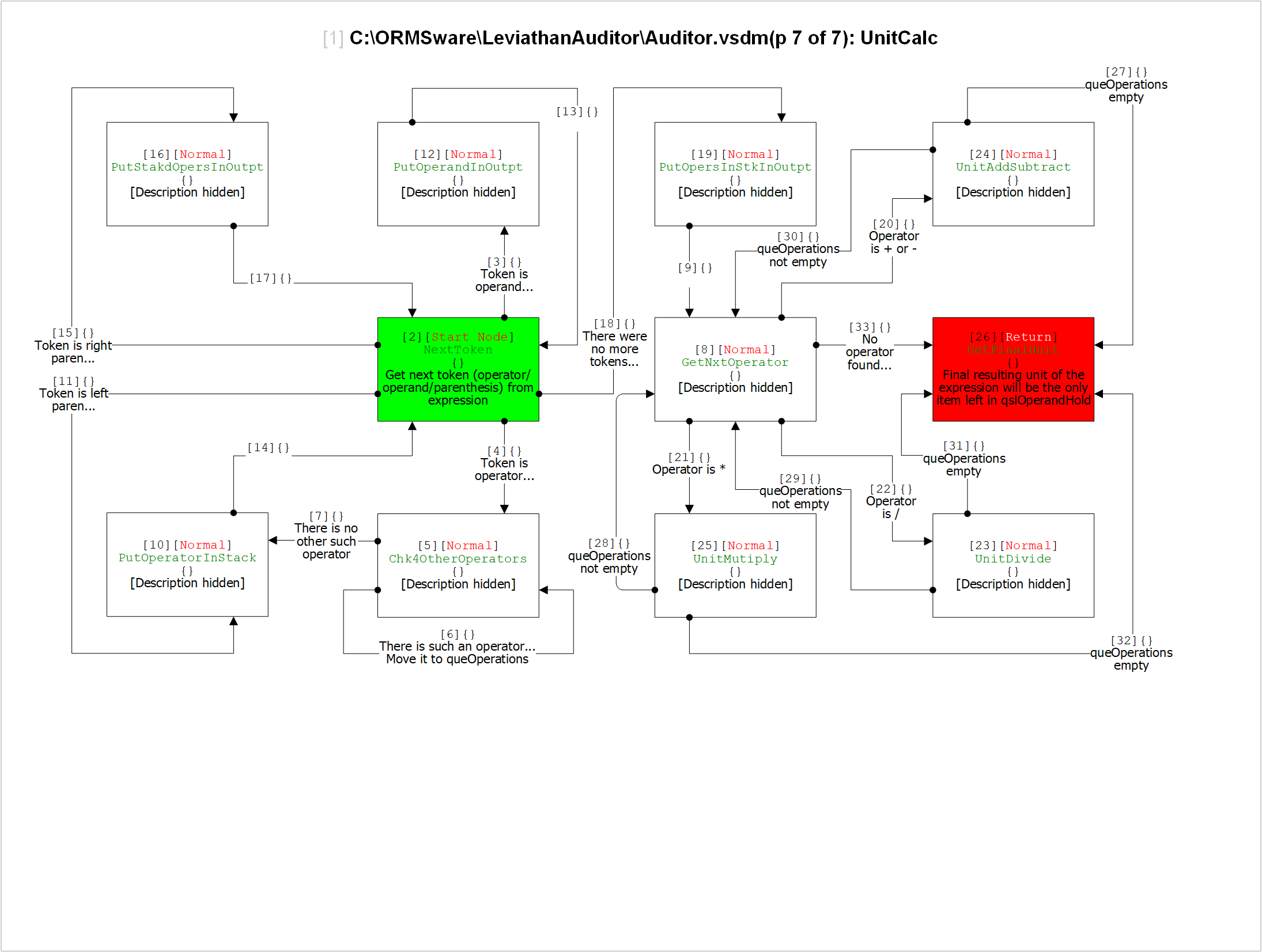

  7. UnitCalc (some node descriptions in this network are intentionally hidden due to Ushar Enterprises Inc's proprietary reasons)

Note: As of 2012 Leviathan modeling system's arithmetic operators were limited to + - * and / (adding, subtracting, multiplying and dividing). This may have changed since then.
